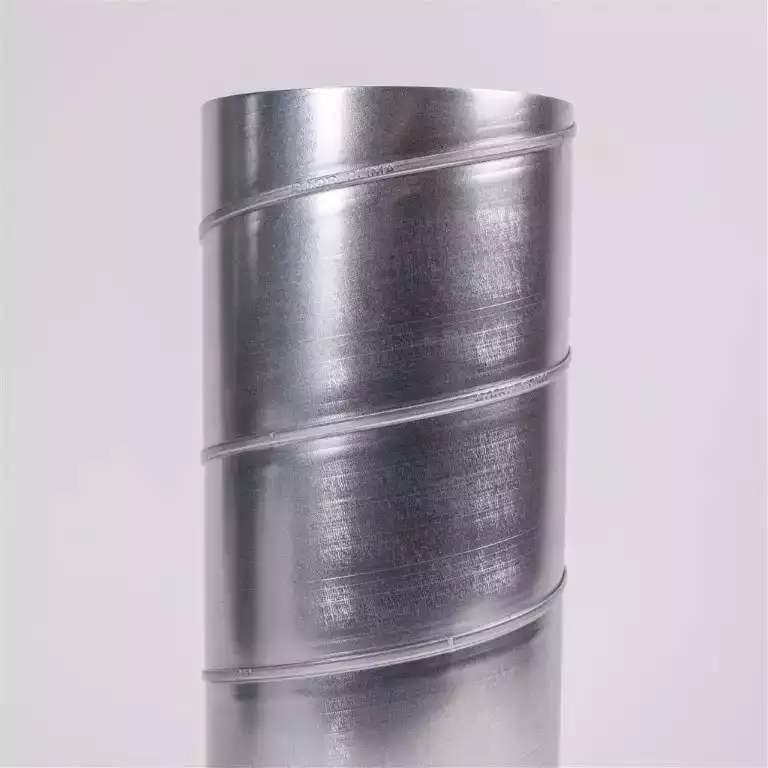

The spiral formed pipes produced by us have a patented seam that stabilizes the pipes and ensures that tolerances are maintained even during processing and transport. Larger sizes are factory-made with additional ribbing.
• Quick and easy installation
• Factory mounted gasket on request
• Can be installed in all seasons
• Heat resistant
• They have a positive pressure up to 3000 Pa
Dimensions are according to Eurovent.
Tested for Class D airtightness according to EN15727.

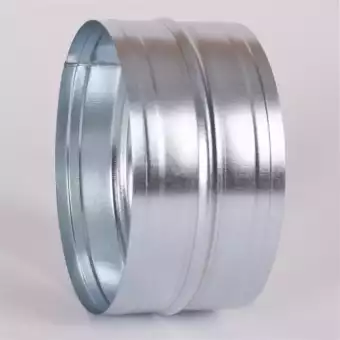

Internal and external connections for spiral pipes
Only used between two pipes, not between pipes and other fittings

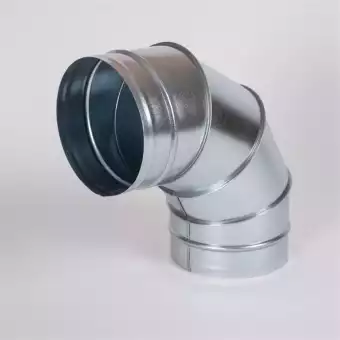

From ø80 to ø125 - welded elbows made of galvanized sheet metal with Rm = 1 D.
From ø160 to ø1250 - segment elbows made of galvanized sheet metal with Rm = 1 D
Deviation angle from 15 to 90 degrees.
They are available with a variable bending radius, which you must specify when ordering. The standard radius is 1D.
Like all other fittings, they are available with or without a rubber seal
T-shaped and Y-shaped branches with branching agles between 45deg and 90deg
Like all other fittings, they are available with or without a rubber seal

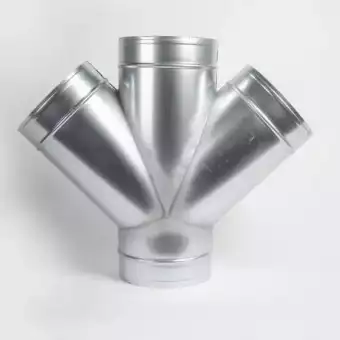

Four-way branches with X-shape or fork type.
Like all other fittings, they are available with or without a rubber seal.

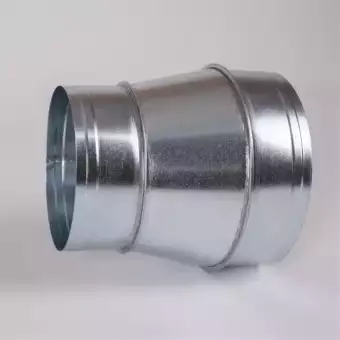

There are two types - concentric and tangential reducers.
Like all other fittings, they are available with or without a rubber seal

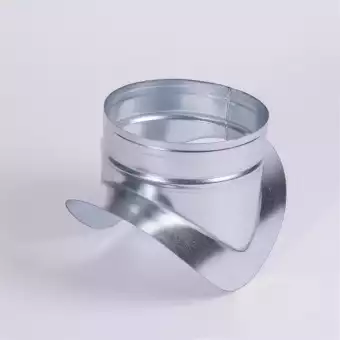

Spigots are a budget solution for branching from a main air duct.
They somewhat replace the use of a T-piece or X-piece, but it is not recommended to use them frequently.
They are more suitable for accidental branches, which were necessary to be introduces after the completion of a ventilation system.
They are produced with a branch angle of 45 and 90 degrees.
Like all other fittings, they are available with and without a rubber seal

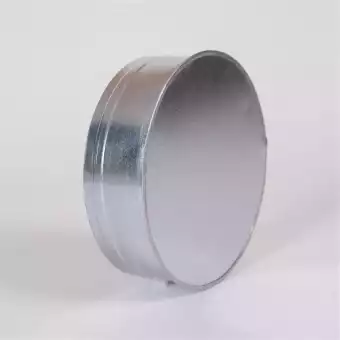

End caps for sealing off a spiral air duct.
They are produced in two variants - for internal and external application.
Like all other fittings, they are available with and without a rubber seal

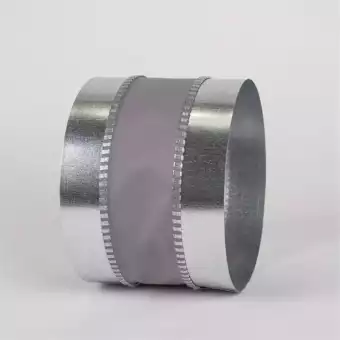

Flexible connections for connecting spiral air ducts to ventilation equipment, which dampens the transmission of vibrations from the equipment to the air supply network.
Available in standard version and in high-temperature resistant version.

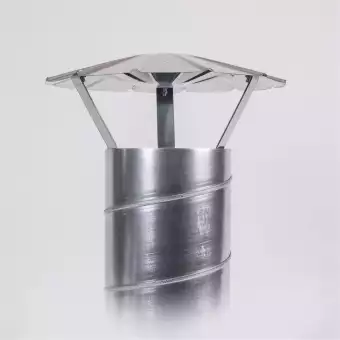

Topping elements for vertical spiral pipework.
A number of types are available for different applications.

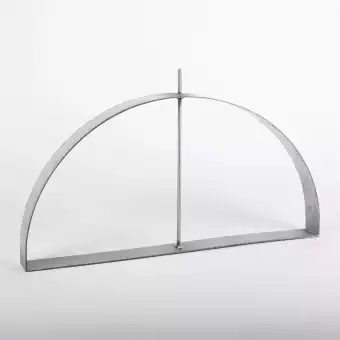

Different types of fasteners and suspension elements that will help you suspend your spiral air ducts.
| CODE | Product |
|---|---|
| Ds | Spiral tube |
| NPL | Internal joint |
| МF | External joint |
| BFL 15-90 | Elbows 15-90 degrees |
| RCLL | Concentric reducer |
| RLL | Tangential reducer |
| TCPL | T-piece 90deg |
| TVL | T-piece 45deg |
| YVL | Y-piece |
| XCPL | X-cross piece 90deg |
| XVL | X-fork piece 45deg |
| PSL | Branch |
| ESL | Internal cap |
| EPF | External cap |
| Diameter, mm | Weight, kg | Additional ribbing |
|---|---|---|
| ø80 | 1,0 | no |
| ø100 | 1,3 | no |
| ø125 | 1,6 | no |
| ø160 | 2,1 | no |
| ø180 | 2,3 | no |
| ø200 | 2,6 | no |
| ø224 | 2,9 | no |
| ø250 | 3,2 | no |
| ø280 | 3,6 | no |
| ø300 | 3,8 | no |
| ø315 | 4,1 | no |
| ø355 | 6,1 | no |
| ø400 | 6,8 | no |
| ø450 | 7,7 | yes |
| ø500 | 8,5 | yes |
| ø560 | yes | |
| ø630 | yes | |
| ø710 | yes | |
| ø800 | yes | |
| ø900 | yes | |
| ø1000 | yes | |
| ø1120 | yes | |
| ø1250 | yes |
